Order no.: 125150

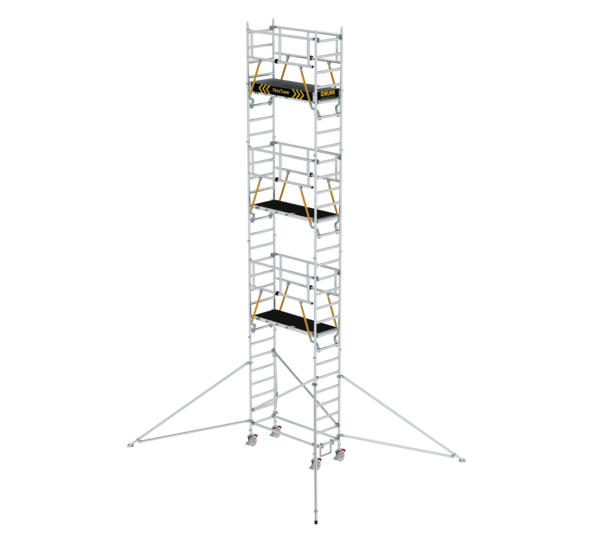

FlexxTower SGX ergo
€ 8,300.00
RRP without VAT
Specifications
Working height
9.55 m
Scaffolding length
5.37 m
Scaffolding width
4.24 m
Scaffolding height
8.82 m
Platform width
600 mm
Platform length
1.8 m
Load capacity
2 kN/m2
Transport dimensions
3150 x 800 x 1550 mm, 208 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
possible & allowed
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, indoor, lateral installation
0 kg
Ballasting of scaffolding, outdoor, central installation
90 kg
Ballasting of scaffolding, outdoor, lateral installation
90 kg
Business division
MUNK Günzburger Steigtechnik
Platform height
7.55 m
Information
- Mobile scaffolding made of sturdy aluminium tubing with welded frame parts
- For lower workplaces, the scaffolding can also be assembled at lower heights
- Integrated 1.8 m Ergo platform - up to 40 % lighter, more compact and easier to handle than conventional platforms
- Secured on all sides thanks to leading railing; can be assembled and dismantled from level to level by one person (can be used by up to two people)
- Tool-free assembly thanks to push-fit connectors and quick-release connectors
- Easy to handle thanks to individual lightweight parts
- Excellent flexibility and stability, thanks to fold-out triangular outrigger with swivel base – also ideal for wall mounting or moving in narrow passages
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Safety. Made in Germany.
Comparison table
| Product name | FlexxTower SGX ergo with advance railing Platform height 7.55 m | FlexxTower SGX ergo with advance railing Platform height 2.51 m | FlexxTower SGX ergo with advance railing platform height 3.07 m | FlexxTower SGX ergo with advance railing platform height 4.47 m | FlexxTower SGX ergo with advance railing platform height 5.59 m | FlexxTower SGX ergo with advance railing platform height 6.43 m |
|---|---|---|---|---|---|---|
| Working height | 9.55 m | 4.51 m | 5.07 m | 6.17 m | 7.59 m | 8.43 m |
| Scaffolding length | 5.37 m | 1.91 m | 5.37 m | 5.37 m | 5.37 m | 5.37 m |
| Scaffolding width | 4.24 m | 957 mm | 4.24 m | 4.24 m | 4.24 m | 4.24 m |
| Scaffolding height | 8.82 m | 3.78 m | 4.34 m | 5.74 m | 6.86 m | 7.7 m |
| Platform width | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Platform length | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m |
| Load capacity | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 |
| Transport dimensions | 3150 x 800 x 1550 mm, 208 kg | 2500 x 800 x 950 mm, 96 kg | 3150 x 800 x 950 mm, 123 kg | 3150 x 800 x 1050 mm, 160 kg | 3150 x 800 x 1050 mm, 172.5 kg | 3150 x 800 x 1500 mm, 200.7 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | possible & allowed | not possible | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, lateral installation | possible & allowed | not possible | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 90 kg | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, indoor, lateral installation | 0 kg | - | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, outdoor, central installation | 90 kg | 310 kg | 0 kg | 0 kg | 10 kg | 150 kg |
| Ballasting of scaffolding, outdoor, lateral installation | 90 kg | - | 0 kg | 0 kg | 10 kg | 150 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Platform height | 7.55 m | 2.51 m | 3.07 m | 4.47 m | 5.59 m | 6.43 m |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
