Order no.: 930210

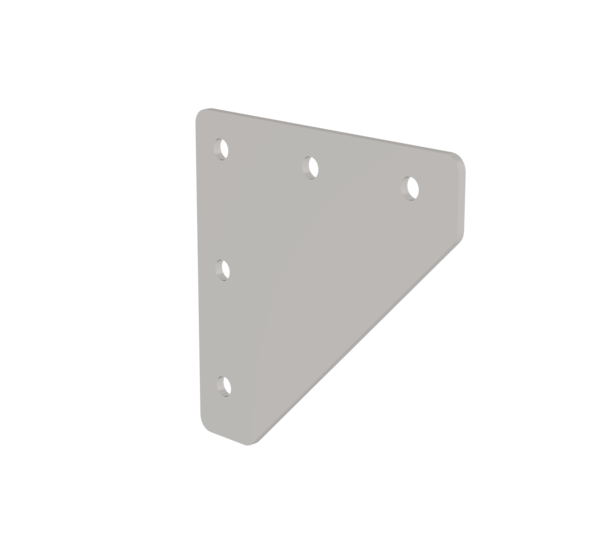

Gusset plate 110x110x3 mm
Price on demand
Specifications
Connection type
Angle connection
Material
Stainless steel
Profile dimension X
30 mm
Weight/piece
193 g
Groove size
6 mm
Dimension A
110 mm
Dimension B
110 mm
Dimension C
3 mm
Dimension D
24 mm
Order no.
930210
Information
- Gusset plate for profile 30
- For reinforcing connections that are subject to heavy stresses
High-strength stainless steel reinforcements for stressed profile joints! MUNK gusset plates made of stainless steel reinforce angle and T-joints where high forces or vibrations occur – from 30 mm profiles to 80 mm heavy-duty constructions.
Reinforcement exactly where it is needed
- Gusset plate variants for all profile sizes: 30 mm (6 mm grooves), 40 mm (8 mm grooves) to 80 mm (8 mm grooves)
- Two types of connection: angle connections (90° corners) and T-connections (intersections)
- 3 mm stainless steel wall thickness: corrosion-resistant and durable under dynamic loads
Easy integration into existing structures
Gusset plates are fastened with standard slot nuts and screws – no machining required. Suitable for both initial installation and subsequent reinforcement.
Typical areas of application
- Heavy-duty machine frames: Reinforcement of main nodes in machining centres and presses
- Vibration-stressed frames: Damping of vibrations in conveyor systems and production lines
- Safety-critical connections: Additional reliability for test benches and hoisting equipment
- Transport frames: Increased fatigue strength for mobile tugger train systems
Discover MUNK gusset plates – professional reinforcement for profile connections that can handle critical loads today and be expanded tomorrow.
