Order no.: 930209

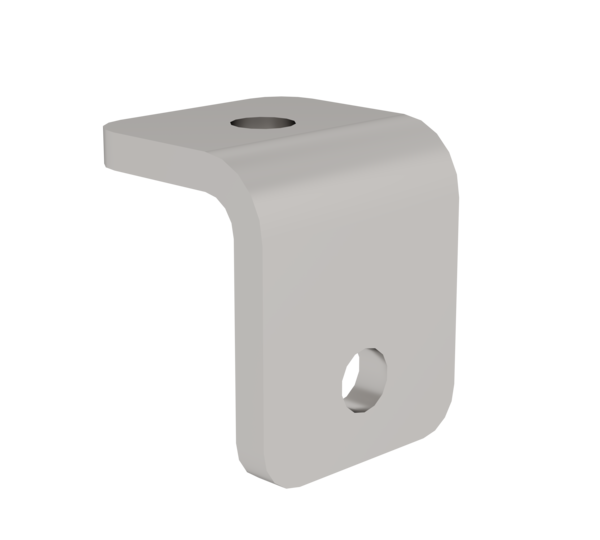

Mounting bracket 30x30 mm
Price on demand
Specifications
Material
Galvanised steel
Profile dimension X
30 mm
Profile dimension Y
30 mm
Weight/piece
46 g
Groove size
6 mm
Dimension A
27 mm
Dimension B
34 mm
Dimension C
4 mm
Order no.
930209
Information
- Profile angle for profile 30
- Flat, space-saving angle
- For joining profiles to each other
- For assembling different components
- No machining required
Flat mounting bracket for space-saving profile connections! The MUNK mounting bracket made of galvanised steel creates stable 90° connections – without machining and with minimal space requirements.
Space-saving & robust design
- Flat design: Only 4 mm (30×30) or 5 mm (40×40) material thickness for minimal space requirements between profiles
- Galvanised steel: corrosion protection for continuous use in industrial and outdoor applications
- Weight-optimised: 46 g (30×30) or 100 g (40×40) – lighter than die-cast corner brackets
Universally applicable without machining
Suitable for all MUNK construction profiles with 6 mm T-slots (30 mm profiles) or 8 mm T-slots (40 mm profiles). No machining required – insert the slot nuts, attach the angle bracket, screw it in place.
Versatile connection options
- Profile connections: Stable frame corners for machine frames and enclosures
- Component assembly: Fastening of panels, sheets or accessories
- Bracing: Retrofitting of existing constructions
Typical areas of application
- Machine frames: Space-saving corner connections in confined spaces
- Protective & test enclosures: Flat assembly without annoying protrusions
Assembly tables: Fastening of worktops or side components - Transport frames: Lightweight bracing for mobile constructions
Discover the MUNK mounting bracket – the slim alternative for profile connections that saves space today and can be flexibly expanded tomorrow.
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Mounting bracket: 1 x
Comparison table
| Product name | Mounting bracket 30x30 mm | Mounting bracket 40x40 mm |
|---|---|---|
| Material | Galvanised steel | Galvanised steel |
| Profile dimension X | 30 mm | 40 mm |
| Profile dimension Y | 30 mm | 40 mm |
| Weight/piece | 46 g | 100 g |
| Groove size | 6 mm | 8 mm |
| Dimension A | 27 mm | 37 mm |
| Dimension B | 34 mm | 40 mm |
| Dimension C | 4 mm | 5 mm |
| Order no. | 930209 | 930208 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
