Specifications
Working height
3.6 m
Step design
Steps
Number of steps/rungs
7 steps
Platform included as step
Yes
Platform height
1.58 m
Platform height up to railing
1 m
Step depth
80 mm
Step/Rung distance
235 mm
Height
2.64 m
Total length folded
2.81 m
Base spread
1.46 m
Inclination
70 °
Lower outer width
680 mm
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access
Transport dimensions
2806 x 685 x 279 mm, 14.5 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
051097
Information

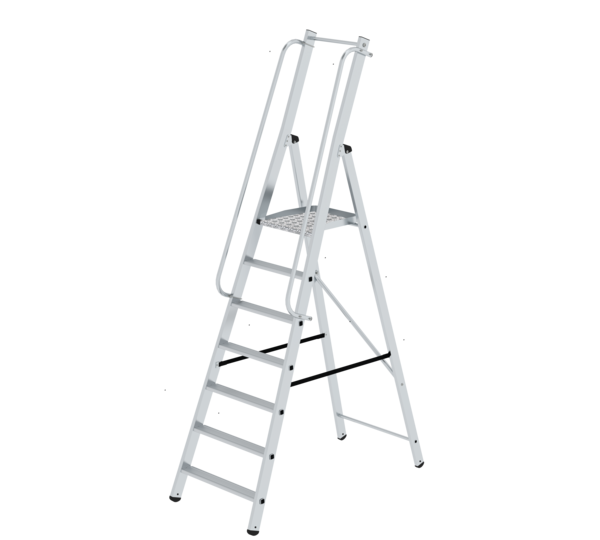

- Platform ladder made of aluminium
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- Height of the partial enclosure 1,000 mm
- Large, trapeze-shaped platform (400 / 360 x 425 mm)
- 4-fold edged step-to-side-rail connection
- Conical side-rail guide for safe stance
- Two pre-assembled handrails for safe ascent and descent
- 'safe-cap' ladder joint
- Non-slip ladder shoes
- Spreader lock with two high-strength polyester straps
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Handrail (mounted): 2 x
- Assembly instructions: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | ML platform ladder 4 steps | ML platform ladder 5 steps | ML platform ladder 6 steps | ML platform ladder 7 steps | ML platform ladder 8 steps |
|---|---|---|---|---|---|
| Working height | 2.9 m | 3.1 m | 3.35 m | 3.6 m | 3.8 m |
| Step design | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps |
| Platform included as step | Yes | Yes | Yes | Yes | Yes |
| Platform height | 880 mm | 1.11 m | 1.35 m | 1.58 m | 1.82 m |
| Platform height up to railing | 1 m | 1 m | 1 m | 1 m | 1 m |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Height | 1.94 m | 2.17 m | 2.41 m | 2.64 m | 2.88 m |
| Total length folded | 2.06 m | 2.31 m | 2.56 m | 2.81 m | 3.06 m |
| Base spread | 970 mm | 1.15 m | 1.3 m | 1.46 m | 1.61 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 600 mm | 620 mm | 650 mm | 680 mm | 710 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access |
| Transport dimensions | 2060 x 600 x 283 mm, 10 kg | 2310 x 630 x 279 mm, 11.5 kg | 2560 x 656 x 282 mm, 12.5 kg | 2806 x 685 x 279 mm, 14.5 kg | 3060 x 714 x 278 mm, 15.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 051094 | 051095 | 051096 | 051097 | 051098 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
